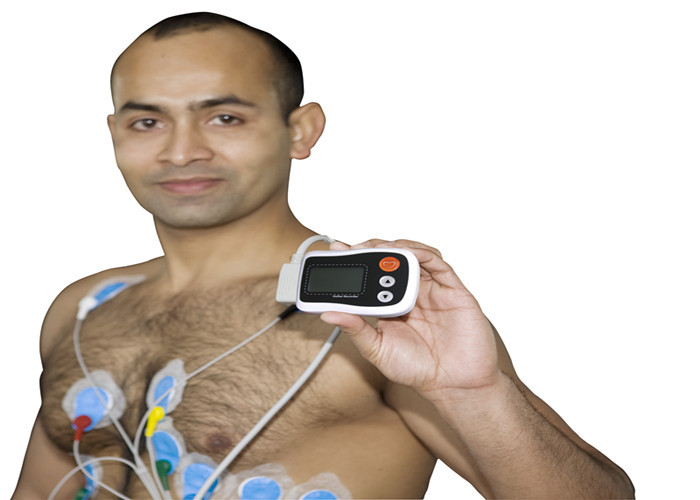

Mobile 10-Lead Holter ECG Recorder Device , Digital Electrocardiograph Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | holter ecg recorder,ecg electro cardio graph |
||
|---|---|---|---|
12 channel ECG holter recorder with 10 leads
Quick Detail
|
Name |
ECG holter |
Sample rate |
1024/Sec max |
|
Channels |
3-channel, 12-channel |
Recording |
Full disclosure |
|
Resolution |
8-16 bits |
Download interface |
SD card reader or USB line |
Description
|
Brand Name |
V&H |
|
Model Number |
CV3000 |
|
Place of Origin |
Beijing, China (Mainland) |
|
Type |
Medical Micro-Devices |
|
Color |
white |
|
Signal verification |
LCD display |
|
Frequency response |
0.05HZ to 60Hz |
|
Certification |
CE/ISO/FDA |
|
Function |
ST-T Analysis, Pacemaker, HRV, T-Wave Alternance |
Holter monitor
The CV3000 Holter ECG is intended for patients requiring ambulatory (Holter) monitoring. The following is a
listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
Holter monitor Specifications
|
Memory
|
Recording time: 24-72 hours Type: SD Capacity: 2GB |
|
Physical
|
Dimensions: 72*53*16mm Weight with battery: 62g Enclosure: ABS plastic Operating position: any orientation |
|
Electrical |
Gain settings: 0.5X, 1X and 2X Connector: 19 pin Patient cable: 10 leads or 5 leads |
