Medical Resting Iphone Ipad Bluetooth ECG Machine

large.img.alt
small.img.alt small.img.alt

Large Image :  Medical Resting Iphone Ipad Bluetooth ECG Machine Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FDA,CO and CQ so on
Model Number: iCV200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,CREDIT CARD
Supply Ability: 50 sets per week
Detailed Product Description
COLOR: Red Communication: Bluetooth
Transfer Way: Wireless Type: Resting
Properties: Diagnostic Instruments Other: ICloud ECG Web
Name: Resting Class II Medical Red Color Recorder IPhone/iPad Bluetooth ECG Machine Clasified Instrument: Medical Class II
Function: Automatical Interpretation&meausrements
High Light:

Ipad Bluetooth ECG Machine

,

Iphone Bluetooth ECG Machine

,

Bluetooth Resting ECG Machine

Resting class II Medical Red color Recorder iPhone/iPad Bluetooth ECG Machine

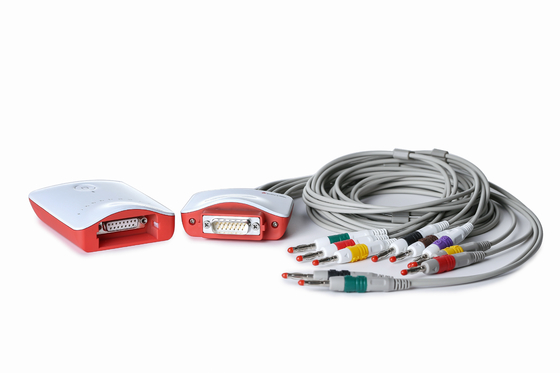

The model of the device is iCV200S,it is a portable ECG system with CardioView family. It includes a data acquisition recorder and iCV200S 12-lead patient cable.The ECG waveform can be displayed on an iOS equipment installed a vhECG Pro App. The system is designed and manufactured by V&H for patient ECG recording with automatic measurements and interpretations.The device is both for the professional demands and the homecare usage.



ECG Recorder Specifications

Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution

0.4uV

Common Mode Rejection

>110dB

Input Impedance

>20M

Frequency Response

0.05-250Hz(±3bB)

Time Constant

>3.2Sec

Maximum Electrode Potential

±300mV DC

Dynamic Range

±15mV

Defibrillation Project

Build-in









The main features of the iPad ECG Machine iCV200S:

1, Simultaneous 12-lead ECG

2, Automatic Measurements and Interpretations

3, Measurements with fingers

4, ecgCloud and ECG network

5, Indicator light for lead Shedding

6, Recorder connect:Bluetooth 4.0

7, Recorder Power:2*AAA batteries

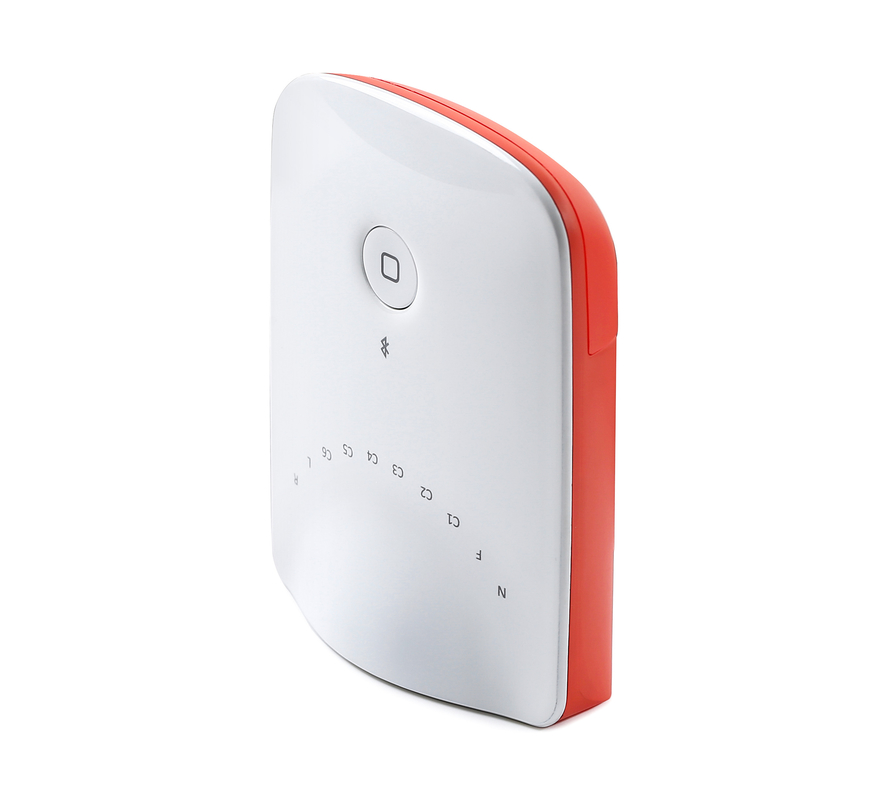

The frontside of recorder:



Medical Resting Iphone Ipad Bluetooth ECG Machine



The Backside Recorder:



Medical Resting Iphone Ipad Bluetooth ECG Machine





About the Working Schematic Diagram:

The illustration on the operation Schematic show further accessories and the interface where they are connected:



Medical Resting Iphone Ipad Bluetooth ECG Machine



Medical Resting Iphone Ipad Bluetooth ECG Machine
