2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved Get Best Price

Product Details:
Place of Origin: China(Mainland)
Brand Name: vhECG
Certification: CE,ISO13485,FDA,FREE SALES&CO
Model Number: iCV200BLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set/sets
Packaging Details: standard package
Delivery Time: 7 working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per week
Detailed Product Description
Product: Wireless ECG For IOS Type: Resting
Transfer Way: Bluetooth Defibrillation Protect: Build-in
Channel: Standard 12 Channel Time Constant: >3.2Sec
Power: 2 AA Batteries Resolution: 0.4uV
High Light:

portable ecg monitor

,

wifi ecg

,

medical ecg machine



Wireless ECG Machine For Bluetooth conenction to Smart White Box With FDA Approved





Know about the wireless ecg device in our company:

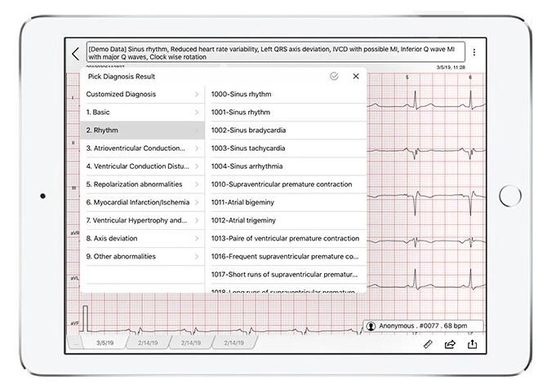

The model of Mobile ECG equipment is iCV200BLE,iCV200 (BLE) is a 12-lead resting electrocardiograph system working with iPad (Apple App: vhECG Pro). With iCV200(BLE) you can record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. Simultaneous 12-lead ECG
  5. Bluetooth communication

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

Advantages of bluetooth communication



  • Save Power
  • Start within 1s
  • Stable Signal
  • Long distance transmission - 10m

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

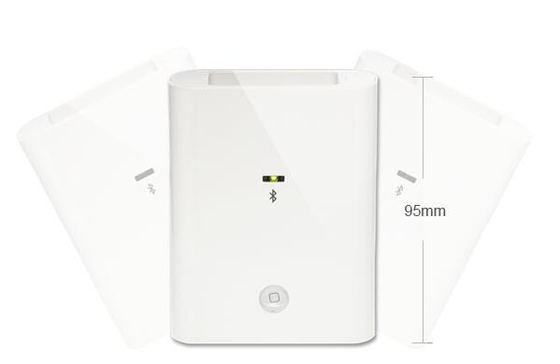

Status of LED light on acquisition recorder

OFF:power off----Color:None

ON:Power on-----Color:Green

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Power 2xAA Batteries
Communication Bluetooth
Defibrillation Project Build-in




2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved

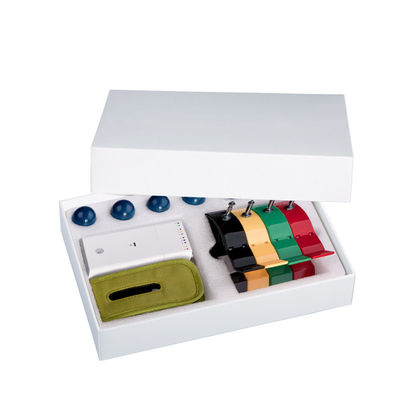

Standard Accessories



  1. Acquisition box * 1
  2. 10-lead patient cable * 1
  3. Suction electrodes * 6
  4. Extremity electrodes * 4
  5. Carry pouch * 1
  6. User guide* 1

2 AA Batteries Power Wireless ECG Machine 0.4uV Resolution With FDA Approved
