ICV200S Automatic Measurement Wireless ECG Machine Portable ECG System
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| COLOR: | WHITE&GREY&GREEN*ORANGE | Communication: | Bluetooth |
|---|---|---|---|
| Transfer Way: | Wireless | Type: | Resting |
| Defibrillation Project: | Built-in | Properties: | Diagnostic Instruments |
| Other: | ICloud ECG Web | ||
| High Light: | portable ecg monitor,wifi ecg,medical ecg machine |
||
Wireless ECG Machine CE and FDA SupportedThree Colors Recorder BT Connected to iOS
KNOW the wireless ecg device iCV200S:
iCV200S is a portable ECG system. It includes a data acquisition recorder and patient cable. The product can connect with iOS equipment such as iPad, iPad-mini and iPhone through Bluetooth.The advantage of the device as below:
1. The first professional electro cardio gram (ECG) product developed on iOS portable device.
2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
3. Automatic measurements and interpretations.
4. Bluetooth compatible
How to connect to the patients' body via the wireless ecg device?
Reference to electrode connection and position
Precordial Lead:Coat the Patient's Chest with conductive paste or wipe alcohol cotton balls incorrect position,then attach the lead and suck ball to the patient in the order as below:
Precordial lead position:
C1:The fourth intercostal space to the right of sternum
C2:The fourth intercostal space to the left of sternum
C3:Mid-point between V2 and V4
C4:The fifth intercostal space in the left clavicular midline
C5:The fifthcostal space in the axillary line
C6:The fifth intercostal space in the axillary midline
Electrode clip-Limb lead:
1,clean the skin of patient
2,Apply condutive paste or wipe with alcohol cotton balls
3,Attach the electrode clip,preferable on the inside of limbs
4,To prevent oxidation and poor connection,please clean the clips after use
The wireless ecg recorder Setting:
The communication between iCV200S recorder and iPad is through bluetooth.
Battery:Set two AAA batteries into the recorder
Control:
Turn on:Click to turn on the recorder
Turn off:Keep Press(two seconds) to turn off the recorder.
State:
Off:The recorder is off
On:The recorder is on
Slow Flash(Once four seconds):Power insufficient-change the batteries
The main updated features of wireless ecg device iCV200S

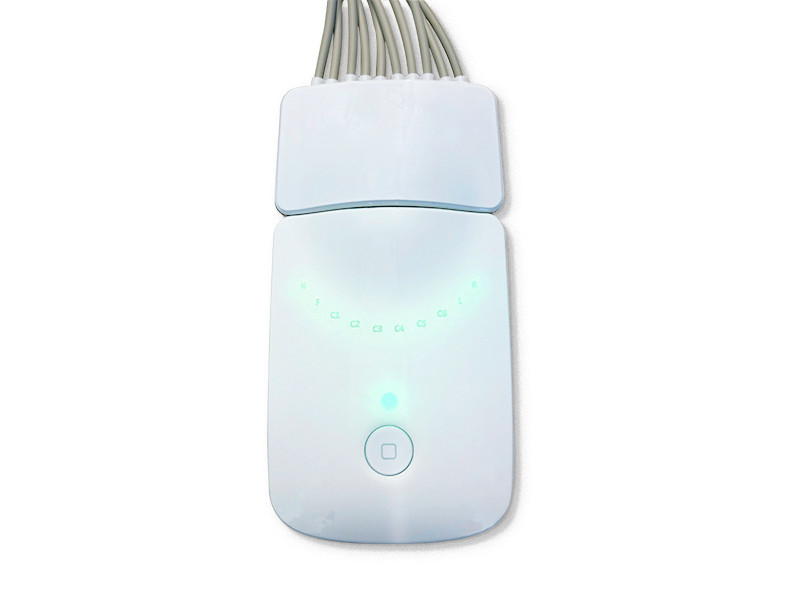

1,Indicator Light for Lead Shedding
Real-time monitoring of patient-to-device connections.
If the green indicator light is not on, that means the lead is sheddling.

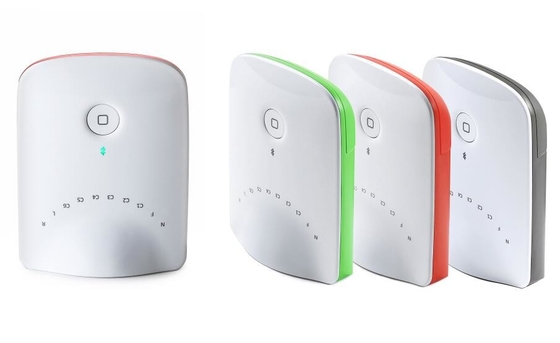

2,Fashion design, 3 Colors Selectable For vhECG iCV200S
GREEN
RED
GREY
3, iCV200S Resting ECG System for iPad is vhECG. It currently runs with the following languages:
iOS Wireless ECG Recorder Specifications
Sampling Rate |
A/D:24K SPS/ChRecording:1K SPS/Ch |
Quantization Precision |
A/D:24 BitsRecording:16 Bits |
Resolution |
0.4uV |
Common Mode Rejection |
>110dB |
Input Impedance |
>20M |
Frequency Response |
0.05-250Hz(±3bB) |
Time Constant |
>3.2Sec |
Maximum Electrode Potential |
±300mV DC |
Dynamic Range |
±15mV |
Defibrillation Project |
Build-in |
