Bluetooth Communication Wireless ECG Machine With Smart White Recorder
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Wireless ECG For IOS | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 Channel | Time Constant: | >3.2Sec |
| Power: | 2 AA Batteries | Resolution: | 0.4uV |
| High Light: | portable ecg monitor,wifi ecg,medical ecg machine |
||
Wireless ECG MachineWith Smart White Recorder Communication Bluetooth Support iPhone/iPad/iPad-mini
What is the Mobile ECG equipment?

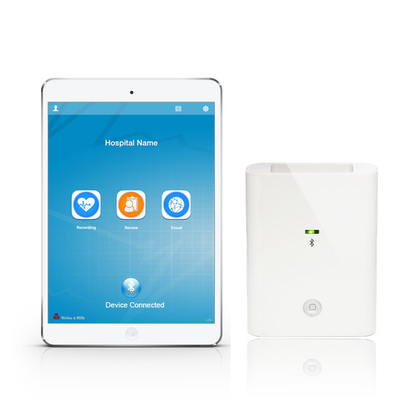

The model of Mobile ECG equipment is iCV200BLE,iCV200 (BLE) is a 12-lead resting electrocardiograph system working with iPad (Apple App: vhECG Pro). With iCV200(BLE) you can record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.
The main functions for the wireless ecg device:
Measurement with Two Fingers
Compare Two ECGs on Same Screen
iagnosis Results List
Repoet in JPEG/PDF, by Emial/Air Printer
vhECG ClDoud
Automatic measurements&interpretation&Diagnosis
The multi-ecg compared:
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |
| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |
Advantages:
- The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
- High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
- Automatic measurements and interpretations.
- Simultaneous 12-lead ECG
- Bluetooth communication
Status of LED light on acquisition recorder
OFF:power off----Color:None
ON:Power on-----Color:Green
Advantages of bluetooth communication
- Save Power
- Start within 1s
- Stable Signal
- Long distance transmission - 10m
-
tatus of LED light on acquisition recorder
OFF:power off----Color:None
ON:Power on-----Color:Green
Standard Accessories
- Acquisition box * 1
- 10-lead patient cable * 1

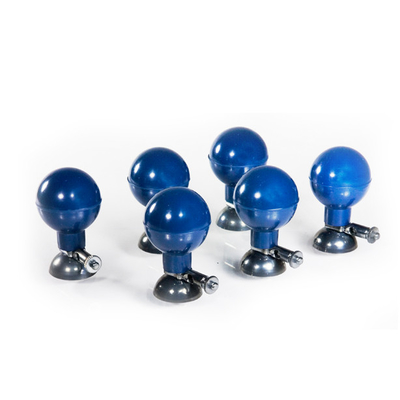

- Suction electrodes * 6

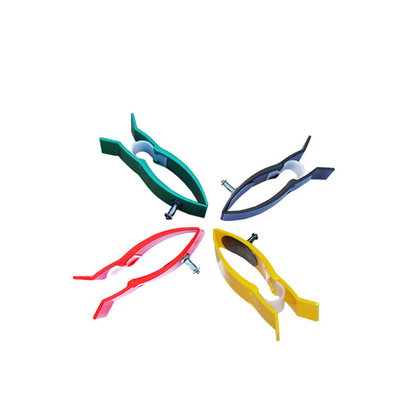

- Extremity electrodes * 4
- Carry pouch * 1
- User manual(CD) * 1
