Home ProductsWireless ECG Machine

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS Get Best Price

Product Details:
Place of Origin: China
Brand Name: VH
Certification: CE,ISO13485,FREE SALEES SO ON
Model Number: iCV200
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: carton
Payment Terms: T/T, Western Union,Paypal,payment on line
Supply Ability: 100 piece per month
Detailed Product Description
Other: Cloud Web Color: White
Transfer Way: Bluetooth Type: Resting
Function: Automatical Monitor And Analysis Market: Asia, Europe, America, Africa
High Light:

portable ecg monitor

,

wifi ecg

,

medical ecg machine



Wireless ECG Machine Small White Recorder to Monitor 12-Channel ECG to Connect iOS Application Bluetooth



Whats is the Wireless ecg device for iOS?

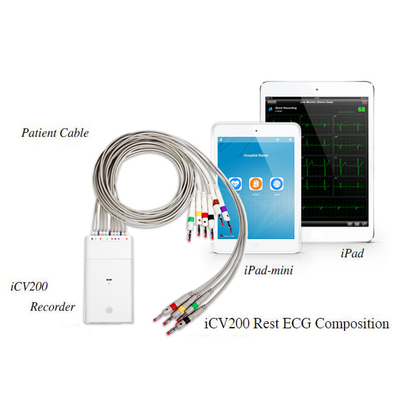

The model of Wireless ecg device  is a 12-lead resting electrocardiograph system working with iPad (Apple App: vhECG Pro). With it,you can record, view and interpret resting ECGs. You can also use it to print ECGs in various formats and send ECGs to vhCloud for sharing.

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

How to download the vhECG  in APP strore of APPLE applications for FREE?

iCV200 (BT) Resting ECG System has its software running on iPad or iPad-mini named vhECG Pro approved by Apple.

Free Download

You can entry your iPad/iPad-mini to download vhECG Pro free as following steps:

Step 1. Entry the APP store of your iPad/iPad-mini/iPhone

Step 2. Search “vhecg pro”

Step 3. Download the software of “vhecg pro”,then install follow required.

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

The requirements of iOS APPLICATIONS when cooencted to the iCV200BLE:



Making sure of the suitable iPad/iPhone:

iPad:iPad 3 and above

iPhone:iPhone 4S and above.

The version of BT is 4.0

Choose and open Bluetooth connection when click the setting page of iPad/iPad mini

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

ECG Recorder Specifications



Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Common Mode Rejection >110dB
Resolution 0.4uV
Input Impedance >20M
Frequency Response 0.05-250Hz(±3bB)
Time Constant >3.2Sec
Maximum Electrode Potential ±300mV DC
Dynamic Range ±15mV
Power 2xAA Batteries
Communication Bluetooth
Defibrillation Project Build-in



12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

Advantages:

  1. The first professional elsctrocardiogram (ECG) product developed on IOS portable device.
  2. High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.
  3. Automatic measurements and interpretations.
  4. Simultaneous 12-lead ECG
  5. Bluetooth communication

Advantages of bluetooth communication



  • Save Power
  • Start within 1s
  • Stable Signal
  • Long distance transmission - 10m



12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS

12 Channel Wireless ECG Machine Small White Recorder Bluetooth For IOS
