Bluetooth Communication Wireless ECG Device White Record Apply To IPhone / IPad APP
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product: | Professional 12 Lead Portable ECG Machine Based On IOS System | Type: | Resting |
|---|---|---|---|
| Transfer Way: | Bluetooth | Defibrillation Protect: | Build-in |
| Channel: | Standard 12 Channel | Time Constant: | >3.2Sec |
| Power: | 2 AA Batteries | Common Mode Rejection: | >110dB |
| Resolution: | 0.4uV | Sampling Rate: | Recording 16 Bits |
| High Light: | portable ecg monitor,wifi ecg,medical ecg machine |
||

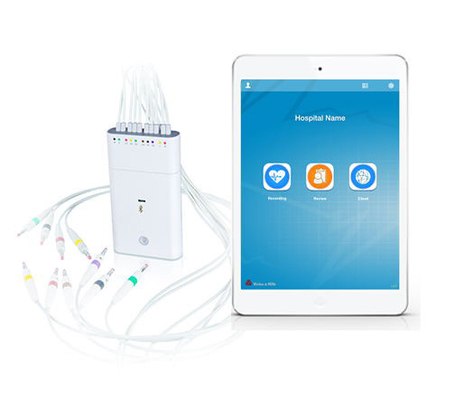

Wireless ECG device With communication Bluetooth White Record Apply to iPhone/iPad APP
What's the Wireless ecg device for iOS?
The model of wireless ecg device is iCV200BLE,with data acquisition recorder and iPad or iPad-mini with Apple App – vhECG Pro. This section will guide you to iCV200BLE(BT) recorder composition and vhECG Pro installation.
ECG Recorder Specifications
| Sampling Rate |
A/D:24K SPS/Ch Recording:1K SPS/Ch |
| Quantization Precision |
A/D:24 Bits Recording:16 Bits |
| Common Mode Rejection | >110dB |
| Resolution | 0.4uV |
| Input Impedance | >20M |
| Frequency Response | 0.05-250Hz(±3bB) |
| Time Constant | >3.2Sec |
| Maximum Electrode Potential | ±300mV DC |
| Dynamic Range | ±15mV |
| Power | 2xAA Batteries |
| Communication | Bluetooth |
| Defibrillation Project | Build-in |
3 advantages-
Small in Size - Portable
Bluetooth Communication - Speedy
Automatic Measurement / Interpretation -Professional

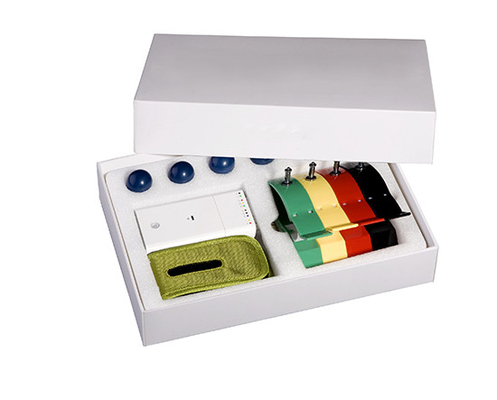

Standard accessories

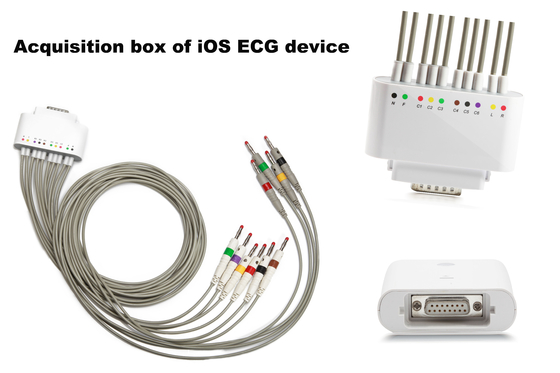

ECG Acquisition Box *1
10-lead patient cable *1

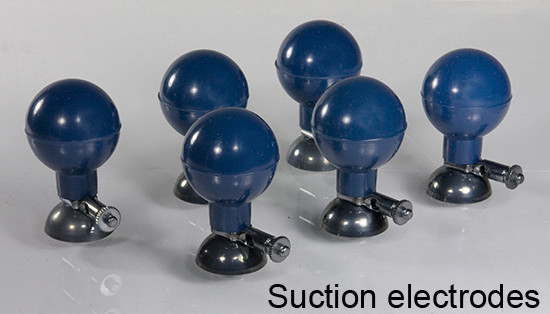

Suction electrodes *1
Extremity electrodes *1
Carry pouch *1
Operating manual(CD) *1

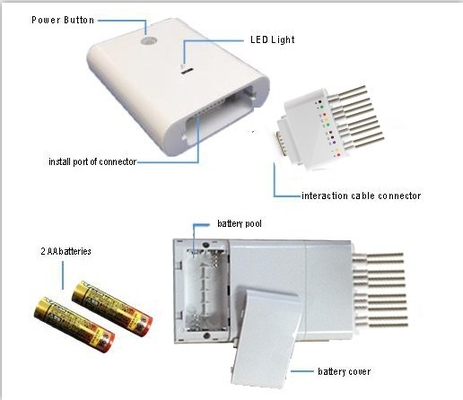

To know the functions of accessories about the wireless ecg device:
1)Battery put-into
Put 2 AA batteries into battery Compartment..
Battery Changing
Change battery if LED light blink slowly,which is one blink per 2 seconds to show power lacking.
A lack of power provided by 2 AA batteries will make bad influence on communication between ECG acquisition box and iPad.Confirm the power is enough before using.
Notice: dispose the used batteries to the recycling bin to protect environment.
2) Operation of button on acquisition recorder
Turn on:Click <button> to turn on the recorder
Turn off:Keep press(two seconds)<button>to turn off the recorder
Notice:The device turns off automatically 15 minutes later when the connection is without
operation between the acquisition recorder and the iPad.
The device keep on setting status when closing .
3) Status of LED light on acquisition recorder
OFF:power off----Color:None
ON:Power on-----Color:Green
How to download vhECG pro software?
Download vhECG Pro from Apple App Store for free
iCV200 (BT) Resting ECG System has its software running on iPad or iPad-mini named vhECG Pro approved
by Apple.
Free Download
You can entry your iPad/iPad-mini to download vhECG Pro free as following steps:
Step 1. Entry the APP store of your iPad/iPad-mini/iPhone
Step 2. Search “vhecg pro”
Step 3. Download the software of “vhecg pro”,then install follow required.
If you have any questions about vhECG Pro download, please contact email josy@vhmedical.com
FAQ
1. What is your MOQ?
Our MOQ is 1 set for ECG device.
2. What kinds of certificates do your products have?
All our products have CE ,ISO and FDA certifiactes.
3. What is the warranty?
The free warranty is 12 months from the day of purchaseing. If there is any fault for our products within the free warranty period, we will repair it and change the fault for free.
4. Do you offer technical support?
Yes, we offer professional engineer for customers on the technical support.
