USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder Get Best Price

Product Details:
Place of Origin: Beijing,China(Mainland)
Brand Name: V & H
Certification: CE&ISO
Model Number: CV-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Packaging Details: Standard Package:25cm*20cm*13cm
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, PayPal
Supply Ability: 50 Units Per Week
Detailed Product Description
Product: 2017 Trending Portable 12 Channle Rest ECG Recorder For Hospital Type: Resting
Function: ECG Work Station,Vector ECG Cable: 12-Lead Patient Cable
Interface: USB Defibrillation Protect:: Built-in Box
High Light:

wireless ecg machine

,

cardiac monitoring equipment

,

electrocardiogram machine

Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder USB connection CV200





CV-200 Rest ECG,VCG and VLP

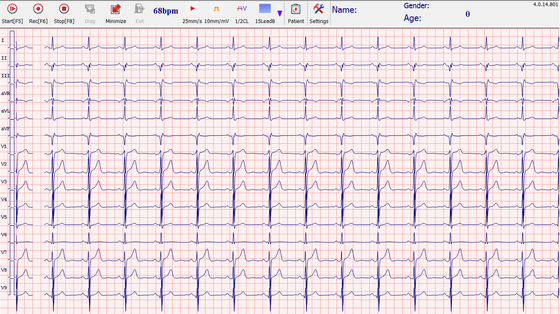

CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data.

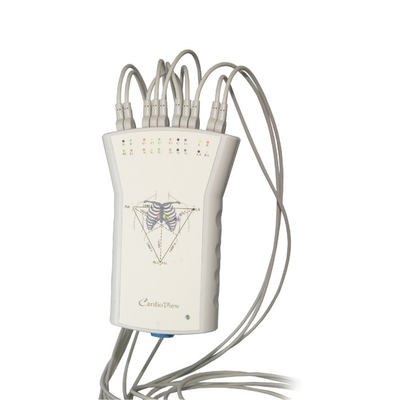

In the Windows XP environment, different reports can be viewed on screen and printed in numerous formats on most Windows compatible printers. By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user friendly environment and 100% safety for the patient.







Minimum Computer System Requirements:



  • Pentium III Processor
  • 128MB RAM
  • 20G HD
  • Windows XP Operating System
  • VGA Compatible Display
  • Windows XP Compatible Laser or Inkjet Printer
  • USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder

USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder

Specification



VH- CV200 ECG work station specification
Sampling 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA
Patient Cable Standard 10-wire,15-Pin D Connector

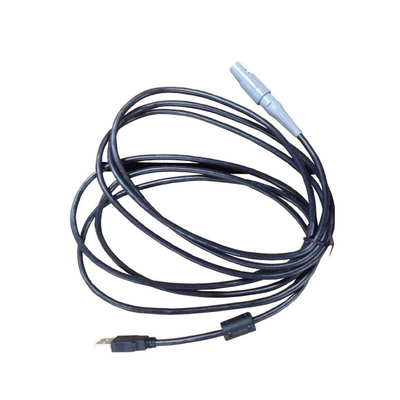

PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)

USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder

USB Connection CV200 Diagnostic ECG Machine 12 Channel Testing Rest ECG With Pantype Recorder
