Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FREE SALES,CQ and CO so on
Model Number: CV200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: Within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 Piece per week
Detailed Product Description
Color: Grey And White Conenction Way: USB Cable
Type: Resting ECG Cable: Simultaneous 12-lead
Function: Automatically Monitor And Analysis ECG Instrument Classification: Class II
Lead: Standard 12 Leads Warranty: 12 Months
Working Modes: Manual / Auto / Analysis / Storage
High Light:

electrocardiogram machine

,

cardiac monitoring equipment

12 Channel Digital ECG Machine For Windows USB Connection EKG With White-Grey Recorder CV200



How about the resting ecg device?

The model of resting ecg device is CV200,with 12-channel ECG analysis system apply to Windows XP,Windows 7 and Windows 8,that adopts full English window menu.12-lead simultaneous ECG acquisition and analysis are two main functions. The system are designed and manufactured for measuring and recording patient’s ECG,VCG and VLP. It also provide measure parameter for analyzing and diagnosis.As a consequence,profound technical operation and too much human intervention are needless.Operator without the knowledgeable of operating technic and much manual intervention can also operate the ECG system's function flexibly and acquires the sophisticated ECG recorder to reach intended use of ECG analysis and diagnosis.

Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG

ECG Recorder Specifications:

VH- CV200-ECG work station specification

Sampling 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording
Digital Resolution 2µV
Frequency Response 0.05-250Hz(+3dB)
Common Mode Rejection >90dB
Input Impedance >10 M
Time Constant 3.2 Sec
Maximum Electrode Potential +300mV DC
Dynamic Range +10mV
Isolate Voltage 4000V
Current Leek <10µA
Patient Cable Standard 10-wire,15-Pin D Connector
PC Interface USB Connector
Dimensions 14912226 mm(5.94.81.0 in.)




Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG



Minimum Computer System Requirements to the ecg device:

· Pentium III Processor

· 128MB RAM

· 20G HD

· Windows XP Operating System

· VGA Compatible Display

· Windows XP Compatible Laser or Inkjet Printer

Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG

How does PC based ECG CV200 work?

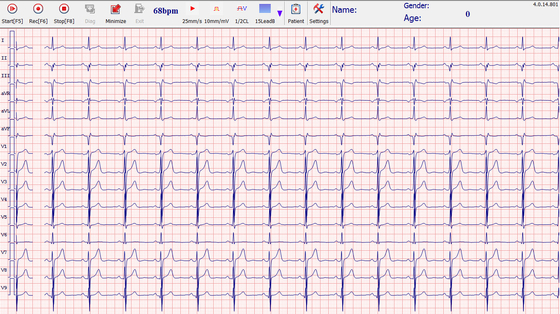

After posed the electrodes to patients body to get an ECG trace, the ECG software on PC is needed to record it. As the electrical signals move through the heart, the ECG software records the strength and the timing of these signals in a graph with real time 12 leads. Traditional monitors/EKG use patches and wires to attach electrodes to the body and communicate the ECG trace to a receiver.Our CV200 will operate the ecg signals by software and diagnose on PC directly,which will be save more times for doctors and reduce working process to improve work effection.

Class II 12 Channel Digital ECG Machine For Windows USB Connection EKG

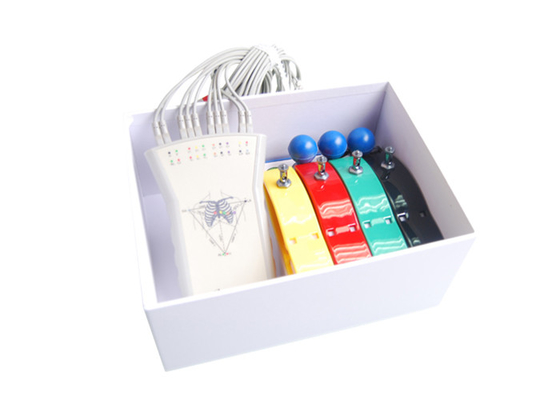

The packing list for oen unit of resting ecg device CV200

Item.

Name

Quantity

1

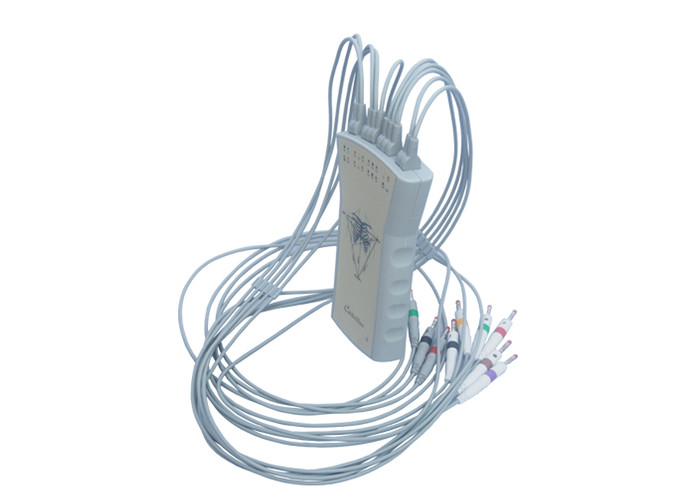

ECG Signal Acquisition box

1

2

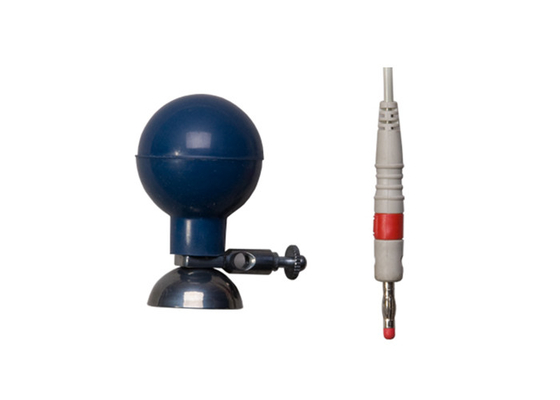

suction electrodes

6

3

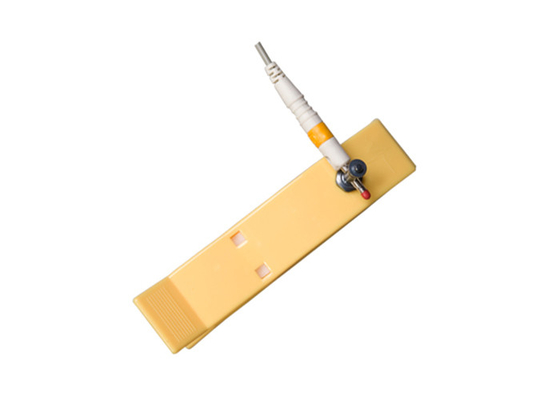

extremity electrodes

4

4

12-Lead patient cables

1

5

USB Cable

1

6

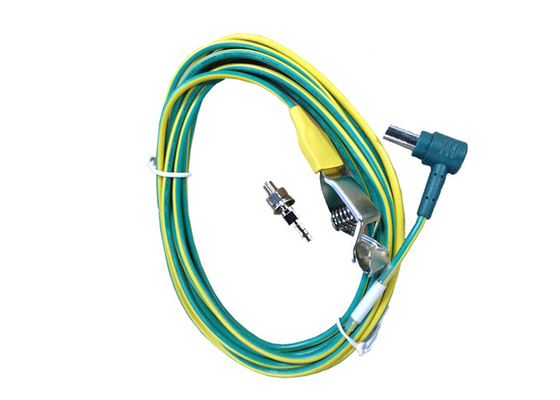

Ground Cable

1

7

Software CD

1

8

User manual

1
