CV200 12 Channel ECG Machine USB Cable Connector EKG Heart Testing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | Grey And White | Conenction Way: | USB Cable |
|---|---|---|---|
| Type: | Resting ECG | Cable: | Simultaneous 12-lead |
| Function: | Automatically Monitor And Analysis ECG | ||
| High Light: | electrocardiogram machine,cardiac monitoring equipment |
||
12 Channel ECG Resting Machine USB EKG Heart Testing with Portable Box CV200
What is the PC Based ECG device CV200?
CARDIO VIEW CV-200 is a PC-ECG system for doctors and clinics with plans to make multi-function electrocardiograph analysis, including 12-lead Resting ECG, Vector ECG (VCG) and Ventricular Late Potential (VLP).
1, The system automatically stores, analyzes, averages, displays and prints the recorded ECG,VCG and VLP data. In the Windows XP environment, different reports can be viewed on-screen and printed in numerous formats on most Windows compatible printers.
2, By means of regular updating of software,CV-200 remains state-of-the-art both now and in the future. With the optical isolating ECG signal sampling recorder connected to PC USB interface,CV-200 guarantees high quality ECG data acquisition, user-friendly environment and 100% safety for the patient.
Minimum Computer System Requirements:
· Pentium III Processor
· 128MB RAM
· 20G HD
· Windows XP Operating System
· VGA Compatible Display
· Windows XP Compatible Laser or Inkjet Printer

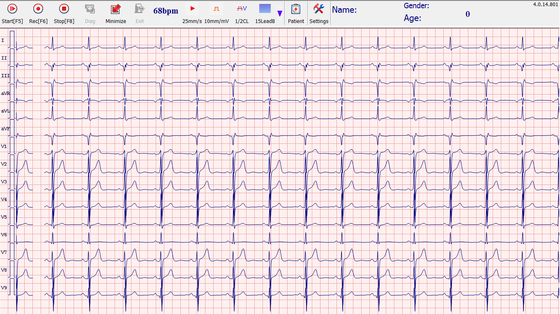

The some description of CV200 software,as belowed:
Name |
Description |
|
|
Button for ECG data acquisition.FN-F5.Use the standard Wilson Lead ,Frank Lead and other lead. |
|
|
Analyze ECG,VCG,VLP,HCG,HRV. |
|
|
Choose Lead system: Wilson 12 Lead;12 Lead +V3R,V4R,V5R;12 Lead+V7,V8,V9;18 Lead;Custom;12 lead+Frank;12Lead+V3R,V4R,V5R+Frank;12Lead+V7,V8,V9+Frank;Frank lead (See Lead hookup & Annex B for more detail) |
|
|
Management of medical records.Check the ECG. |
|
|
Paper speed: 12.5mm/s 25mm/s 50mm/s |
|
|
Gain:5mm/mv,10mm/mv,20mm/mv |
|
|
1/2 chest lead:In the current gain,display 1/2 chest lead voltage; If patient's chest lead voltage at high pressure, chest lead half display is helpful to observe.
|
ECG Recorder Specifications:
VH- CV200-ECG work station specification |
|
| Sampling | 1000 S/S/Ch,12 bits, Simultaneously 12 Leads Recording |
| Digital Resolution | 2µV |
| Frequency Response | 0.05-250Hz(+3dB) |
| Common Mode Rejection | >90dB |
| Input Impedance | >10 M |
| Time Constant | 3.2 Sec |
| Maximum Electrode Potential | +300mV DC |
| Dynamic Range | +10mV |
| Isolate Voltage | 4000V |
| Current Leek | <10µA |
| Patient Cable | Standard 10-wire,15-Pin D Connector |
| PC Interface | USB Connector |
| Dimensions | 14912226 mm(5.94.81.0 in.) |
How does PC based ECG CV200 work?
CV-200 Hardware Connection
1.Put the computer, printer on work table steady, connect printer USB cable to the computer in order to transmit data.
2.Keyboard:Connect the keyboard line to the back of the host on circular or USB interface.
3.Mouse:Connect mouse to the back of the host on the mouse interface or USB interface.
4.ECG acquisition box
The Packing list of CV200:
Item. |
Name |
Quantity |
1 |
ECG Signal Acquisition box |
1 |
2 |

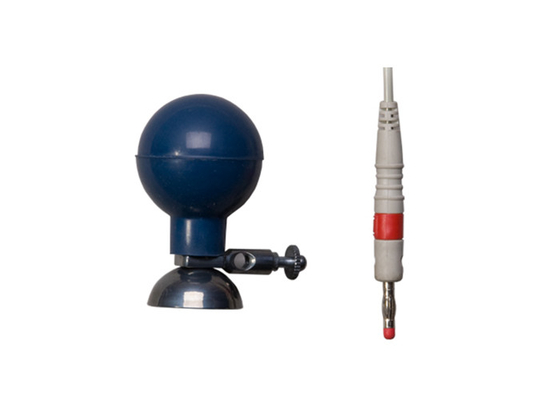

suction electrodes |
6 |
3 |

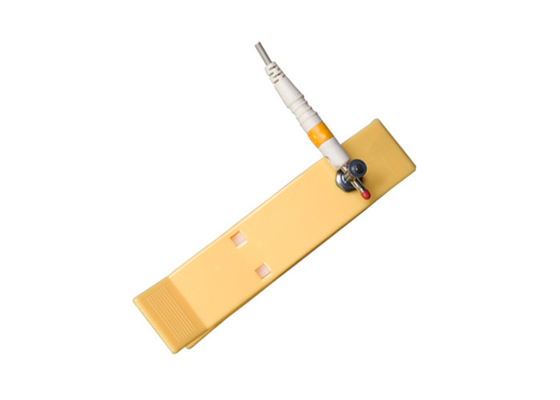

extremity electrodes |
4 |
4 |

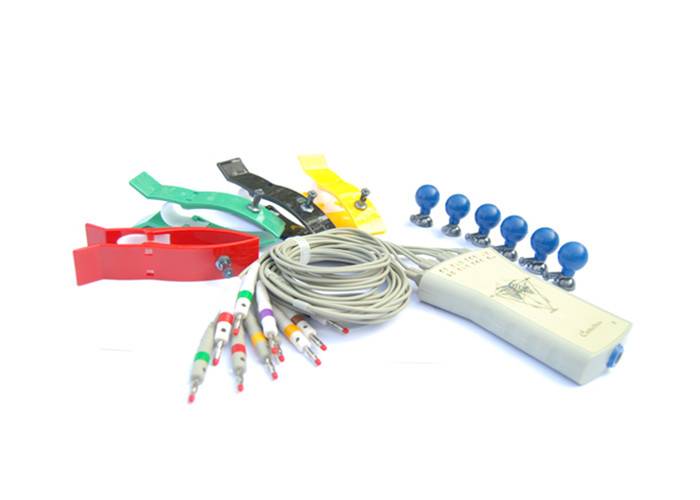

12-Lead patient cables |
1 |
5 |

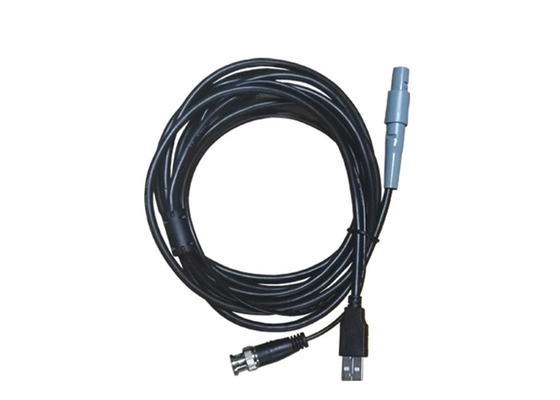

USB Cable |
1 |
6 |

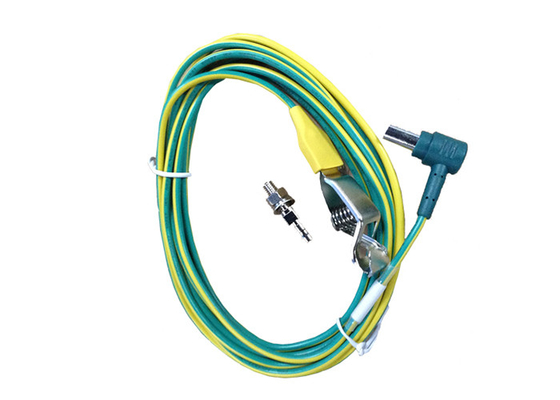

Underground Cable |
1 |
7 |
Software CD |
1 |
8 |
User manual |
1 |
