0.05-60HZ Holter ECG Monitor 12 Channel / 3 Channel Connect With White Recorders
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| COLOR: | WHITE | TYPE: | AMBULATORY HOLTER ECG |
|---|---|---|---|
| CHANNELS: | 3-CHANNEL,12-CHANNEL | RESOLUTION: | 8-16 BITS |
| RECORDING TIME: | 24-72 HOURS | DOWNLOAD INTERFACE: | SD CARD READER OR USB CABLE |
| SAMPLE RATE: | 1024/SEC MAX | FREQUENCY RESPONSE: | 0.05HZ TO 60HZ |
| SIGNAL VERIFICATION: | LCD DISPLAY | PACEMAKER DETECTION: | SUPPORT |
| High Light: | ecg dinamico holter,ecg electro cardio graph |
||
Holter ECG Monitor 12-Channel or 3-Channel CE&FDA Approved Connection with White Recorders
Slim design and light weight, easily get data of our body
Real time waveform display, know every beats without delay
Heart rate monitoring with high accuracy, easily control our health condition
The advantages of Holter ecg device CV3000:
It is intended for patients requiring ambulatory (Holter) monitoring. The following is a listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
The Specifications of Holter recorder:
Channels: 12leads (8 channel) 5leads(3 channel)
Resolution: 8-16 bits
Recording: Full disclosure
Download interface: SD card reader or USB line
Sample rate:1024/Sec max
Frequency response: 0.05HZ to 60Hz
Signal verification: LCD display
Pacemaker Detection: support
|
Memory
|
Recording time: 24-72 hours Type: SD Capacity: 2GB |
|
Physical
|
Dimensions: 72*53*16mm Weight with battery: 62g Enclosure: ABS plastic Operating position: any orientation sampling rate:128Hz/s-1024hZ/S(Optional) Imput Impedance:＞6MΩ CMRR:80dB Peacemaker:Support Display:LCD to show ECG wave,time Language:Chinese,English,French,Italy,Russian,Germany Battery life:96 Hours for 3 leads(suitable) |
| Electrical |
Gain settings: 0.5X, 1X and 2X Connector: 19 pin Patient cable: 10 leads or 5 leads or 7 leads
|

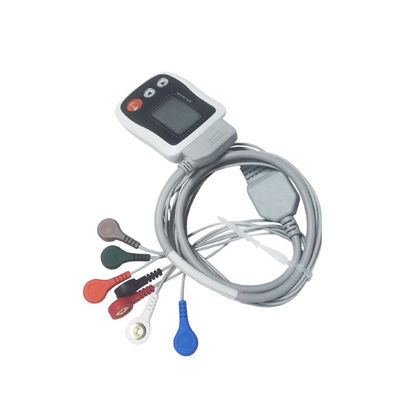

12-channels(10-lead cables)/3-channels(5-lead cables)
We also have 3-channel(7-lead cables),if you need ,we can you the details.
20,000HZ Independent Pacemaker Channel With pacing pulse detection function,function like this:
The Package of device:
