Product Details:
Payment & Shipping Terms:
|
COLOR: | WHITE | TYPE: | AMBULATORY HOLTER ECG |
---|---|---|---|
CHANNELS: | 3-CHANNEL,12-CHANNEL | RESOLUTION: | 8-16 BITS |
RECORDING TIME: | 24-72 HOURS | DOWNLOAD INTERFACE: | SD CARD READER OR USB CABLE |
SAMPLE RATE: | 1024/SEC MAX | FREQUENCY RESPONSE: | 0.05HZ TO 60HZ |
SIGNAL VERIFICATION: | LCD DISPLAY | PACEMAKER DETECTION: | SUPPORT |
High Light: | ecg dinamico holter,ecg electro cardio graph |

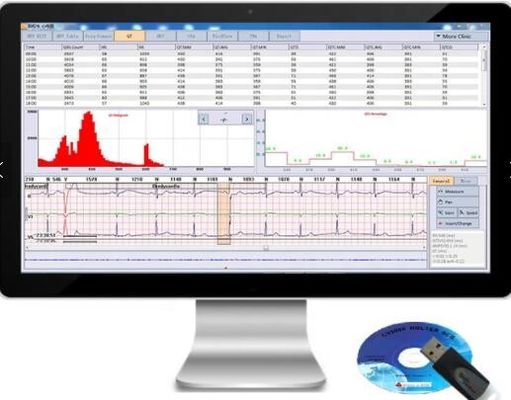

The model of device in our company is CV3000,it is a remarkable advanced Holter system working for both 3-channel and 12-lead ECG recording and analysis.Even with light weight,the compact size and weight is 72*53*16mm and 62kg.
Thanks to its sophisticated software and elaborately designed recorder,CV3000 meets all high-end performance and fiscal respomsiblility.
Channels: 12leads (8 channel) 5leads(3 channel)
Resolution: 8-16 bits
Recording: Full disclosure
Download interface: SD card reader or USB line
Sample rate:1024/Sec max
Frequency response: 0.05HZ to 60Hz
Signal verification: LCD display
Pacemaker Detection: support
Memory
|
Recording time: 24-72 hours Type: SD Capacity: 2GB |
Physical
|
Dimensions: 72*53*16mm Weight with battery: 62g Enclosure: ABS plastic Operating position: any orientation
|
Electrical |
Gain settings: 0.5X, 1X and 2X Connector: 19 pin Patient cable: 10 leads or 5 leads
|
It is intended for patients requiring ambulatory (Holter) monitoring. The following is a listing of the most frequently used for the indications below:
(1) Evaluation of symptoms suggesting arrhythmia or myocardial ischemia.
(2) Evaluation of ECG documenting therapeutic interventions in individual patients or groups of patients.
(3) Evaluation of patients for ST segment changes
(4) Evaluation of a patient’s response after resuming occupational or recreational activities.
(5) Evaluation of patients with pacemakers.
(6) Reporting of time and frequency domain heart rate variability.
(7) Reporting of QT Interval.
