ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection

I'm Online Chat Now
Certification
Good quality Handheld ECG Machine for sales
Good quality Handheld ECG Machine for sales
Good quality and good service

—— Dr.Alam from Egypt

Perfect product,small and smart!

—— Mr.Yann from France

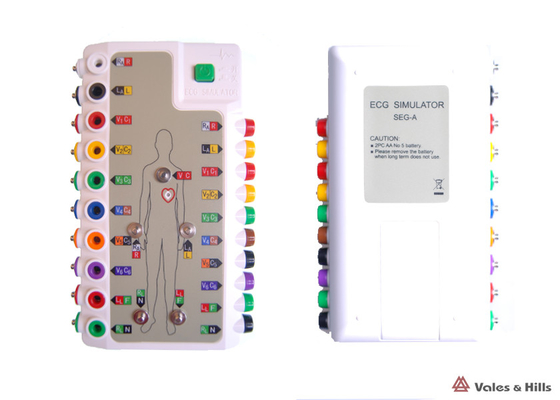

ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,IOS13485
Model Number: PS420
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD
Packaging Details: Carton
Delivery Time: 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,Credit Card
Supply Ability: 50 pieces per week
Detailed Product Description
Material: ABS Plastic Color: White
Channel: 12-channel And 3-channel Transfer Way: Bluetooth
Suitable System: IOS Working Tempareture: 15℃--35℃
In Store: 0℃--50℃ Power: 2*AA Batteries
High Light:

ecg simulator device

,

online ecg simulator

ECG Simulator With White Detector for iOS Wireless Bluetooth Connection



What is it the ECG Simulator?

A calibrated ECG patient simulator is extremely useful during the calibration processes of ECG devices. Vales&Hills Biomedical Tech Ltd.'s device is able to simulate a lifelike, complete 24-hour long Holter-monitoring or a complex stress test examination which includes non-invasive blood pressure measurement as well Resting ECG.

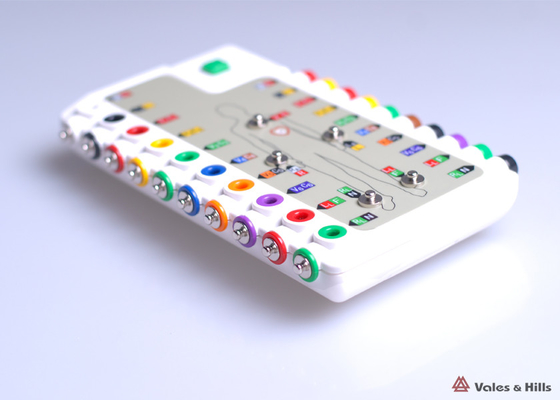

ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection

You can know The ECG simulator in Our company:

The model of it is PS420,It is a portable simulator for detection of ECG equipment , with high performance.It is very small and easy to operation, based on IOS devices. It have various functions of ECG simulation: 12 channels ECG , 35 kind of arrhythmia and so on.







Specification of ECG simulator

SEG-A is handhold and high-function simulator to detect ECG.
Many advantages of it:1,small and smart shape
2,easy to operate
3,based on the iOS application,the transfer way is by bluetooth



Now the software can be downloaded by you for free in App store.The software is for free.

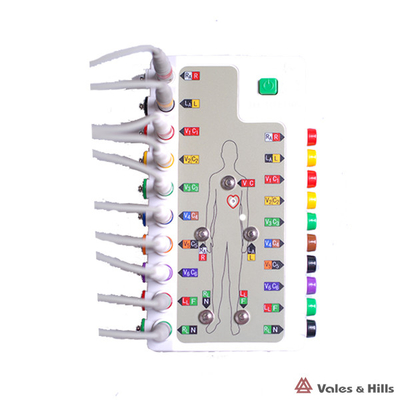

ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection

Many functions for the ECG signal to pick out:

1,12 lead ecg
2,35 items of Arrhythmia
3,peacemaker
4,Atrial Fibrillation





Some Parts of Wave Specification in the software:



Specification
ECG
Normal Heart rate 80 bpm
Optional rate 30 bpm,40 bpm,60 bpm,80 bpm,100 bpm,120 bpm,140 bpm,160 bpm,180 bpm,200 bpm,220 bpm,240 bpm,260 bpm,280 bpm,300 bpm
precision ± 1 %
ECG amplitude: 0. 5 mV,1 mV,1.5 mV and and 2 mV
Amplitude Accuracy rate: ± 2 % lead II
Wave type: adult wave



Natural Wave
Sine Wave
  0.5 Hz,0.67 Hz,4 Hz,10 Hz,40 Hz,50 Hz,60 Hz,75 Hz(1 mV amplitude,leadII)



Lead II Square Wave
  0.125 Hz ,1 Hz,2 Hz



Triangle Wave
  1 Hz,2 Hz



Square Pulse

1.0 mV,30 bpm,60 ms pulse width;1.0 mV,60 bpm,60 mspulse width;

1.0 mV,60 bpm,100 ms pulse width;

Triangle Pulse 1.0mV,60 bpm,20 ms pulse width;1.0mV,60 bpm,90ms pulse width;1.0mV,60 bpm,200ms pulse width;



As a kind of ecg simulator,it can bring your the best function to coperate and the best figures to analysize.It is suitable for lab,clinical ,besides in hospital.school so on.

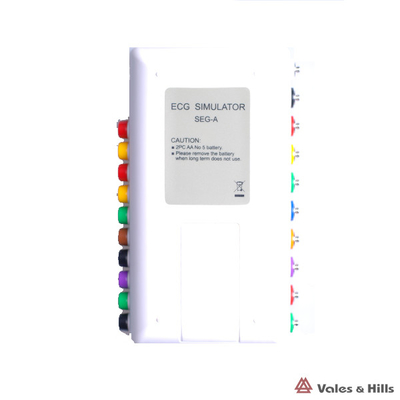

ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection

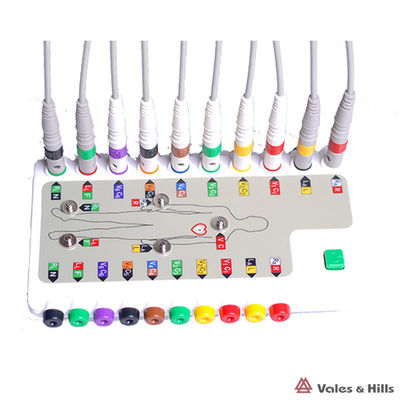

ABS Plastic ECG Simulator White Detector For IOS Wireless Bluetooth Connection







The service we promise to you:

1,pre-sales service

-inquiry and consultation support

-demo testing support

-sample order support



2,after-sales service

-technology support on line

-Notice at first time for software updating

-maintenance or replacement of device support
