Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment Get Best Price

Product Details:
Place of Origin: Beijing,China
Brand Name: V&H
Certification: CE,ISO13485,FDA,CO and CQ so on
Model Number: iCV200S
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD
Packaging Details: Carton
Delivery Time: within 3-5 working days after payment arrival
Payment Terms: T/T, Western Union,CREDIT CARD
Supply Ability: 50 sets per week
Detailed Product Description
COLOR: WHITE&GREY&GREEN*ORANGE Communication: Bluetooth
Transfer Way: Wireless Type: Resting
Defibrillation Project: Built-in Properties: Diagnostic Instruments
Other: ICloud ECG Web
High Light:

electrocardiogram equipment

,

small ecg machine

Home ECG Machine Wireless ECG Machine Factory For iOS with Smart Bluetooth Three Colors Chosen



What’s ECG?


The electrocardiogram (ECG or EKG) is a diagnostic tool that is routinely used to assess the electrical and muscular functions of the heart.

What are the benefits of getting ECG?

An ECG test helps screen and diagnose a variety of cardiac problems. It’s the most common way to check if your heart is healthy or monitor existing heart diseases. If you are experiencing symptoms related to heart problems, have a heart disease in your family or have a lifestyle that negatively impacts your health, you might benefit from an ECG scan or long term monitoring.ECG can detect a heart problem that might lead to a stroke or even uncover a past problem such as a previous heart attack. Such ECG results would be classified as abnormal ECG.

Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

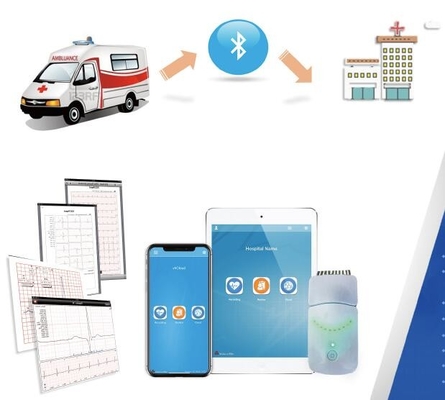

Now our wireless ecg device can be helpful for you to detect your heart at home or in hospital by yourself or by your home doctors.And Enable smart design with our innovative solutions,will solve any heart detection issues and improve the work effection.

Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

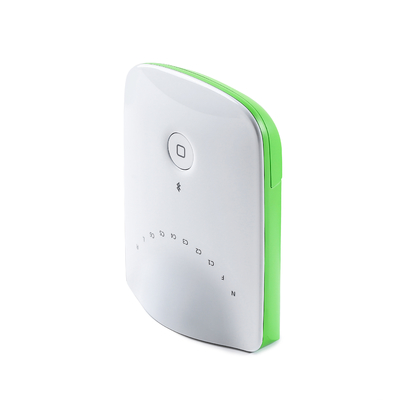

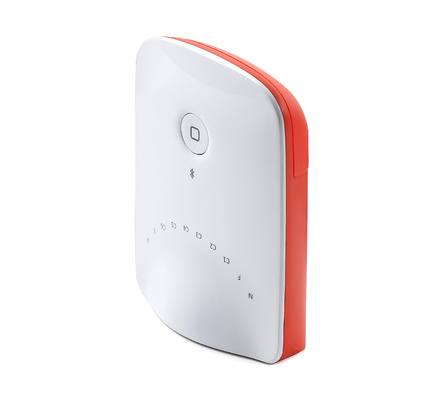

The device of wireless ecg for iOS with Blueooth connection is iCV200S,the updated version of iCV200BLE.Three colors can be supported:Grey,Orange and Green.Different color for different application platform.You can choose one as your favourite options.I believe you will love it.The software will be free for you,and you can download it in APP store by researching VHECG PRO.It is for iOS applications,such as iPad,iPad-mini,iPhone So on.

Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

The advantage of device:

1.The first professional electro cardio gram (ECG) product developed on iOS portable device.

2.High-definition ECG display thanks to its Apple high resolution screen and anti-aliased algorithm.

3.Automatic measurements and interpretations.

4.Bluetooth compatible



ECG Recorder Specifications

Sampling Rate

A/D:24K SPS/Ch

Recording:1K SPS/Ch

Quantization Precision

A/D:24 Bits

Recording:16 Bits

Resolution

0.4uV

Common Mode Rejection

>110dB

Input Impedance

>20M

Frequency Response

0.05-250Hz(±3bB)

Time Constant

>3.2Sec

Maximum Electrode Potential

±300mV DC

Dynamic Range

±15mV

Defibrillation Project

Build-in



Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

The main features of the iPad ECG Machine iCV200S:

1,Simultaneous 12-lead ECG

2,Automatic Measurements and Interpretations

3,Measurements with fingers

4,ecgCloud and ECG network

5,Indicator light for lead Shedding

6,Recorder connect:Bluetooth 4.0

7,Recorder Power:2*AAA batteries





Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment











Smart IOS Small Ecg Machine / Resting Type Electrocardiogram Equipment

 You can know us and our produts more,and start our first cooperation soon.
