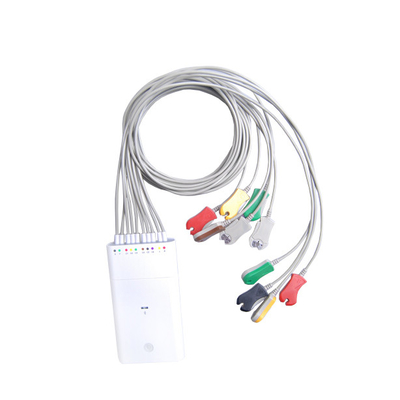

Icv1200 Wireless Ecg Machine Bluetooth Module Conenction With 12 Leads
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White | Transfer Way: | Wireless,bluetooth Module |
|---|---|---|---|
| Leads: | Simutaneous 12 Leads | Type: | Stress |
| Function: | Automatical Monitor And Analysis ECG | Suitable Application: | Windows |
| High Light: | portable ecg monitor,wifi ecg |
||
China Wireless ECG Machine Suppliers With Stress ECG Bluetooth Module Conenction iCV1200

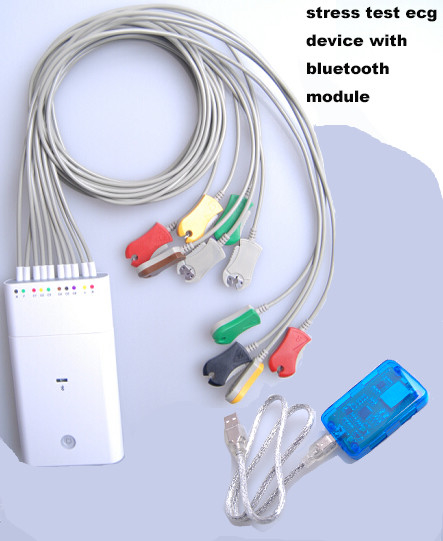

What is the stress ecg device with bluetooth module iCV1200?

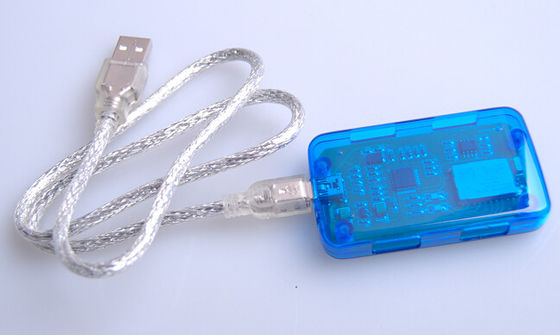

iCV1200 Stress Test System is a perfect solution for Cardiology Diagnosis, it provides Record, Display, Archived, and Analyze ECG Recording and other Measurements.And the connection way is by Bluetooth Module.The suitable application is for Windows.
The Standard features of iCV1200:
· 12-channel resting ECG
· Automatic ECG measurements and interpretation
· 12-channel full disclosure exercise ECG, with ST measurement and rhythm measurement
· Real time display, analyze HR,ST segment, and reanalyze ST segment
· ST, Delta ST,ST/HR,ST slope, J point and R point trends
· Data management system
· Built-in thermal printer records,3,6,or 12 channels simultaneously in real time
· Common laser printer interface for documentation on standard(A4) paper
· CV-1200 controls selection of peripheral
equipment ( ergometers, treadmills and NIBP) through integrated interface protocols(Bruce, Bruce modified, Balke ware, Ellestad, ect.)
· Large color screen with high resolution for paperless operation
· Microsoft Windows XP operating system
Specification
| CV-1200 Specification | ||
|
System
|
Monitor | 17"colour,high resolution |
| Operator interface | Standard alphanumeric PC keyboard, and mouse | |
| Power requirement | 2*AA batteries | |
| Battery | emergency ECG capability with uninterrupted internal power supply for up to 3 minutes | |
| Operating system | Microsoft Windows XP, Ergometer, Treadmill, NIBP | |
| Printing | Chart paper | Thermo reactive, Z-fold,width,A4 |
| Paper speed | 12.5/25/50mm/sec | |
| Sensitivity | 5/10/20mm/mV | |
| Print format | 6/12 channel printout, Automatic baseline adjustment |
|
| Technical Date | Frequency Response |
0.05-70Hz(+3dB) |
| Sampling rate | 1000Hz/ch | |
| CMR | >90dB | |
| Maximum Electrode Potential | +300mV DC | |
| Isolation | 4000V | |
| Current Leek | <10µA | |
